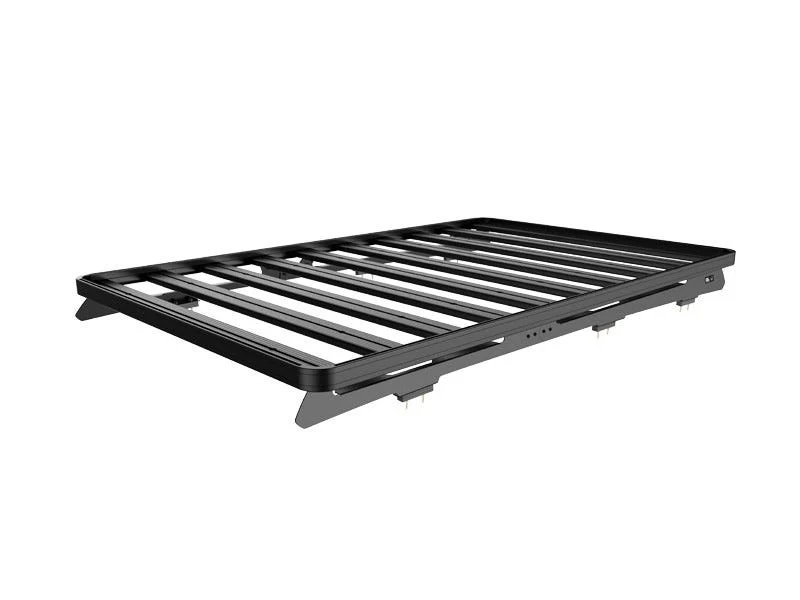

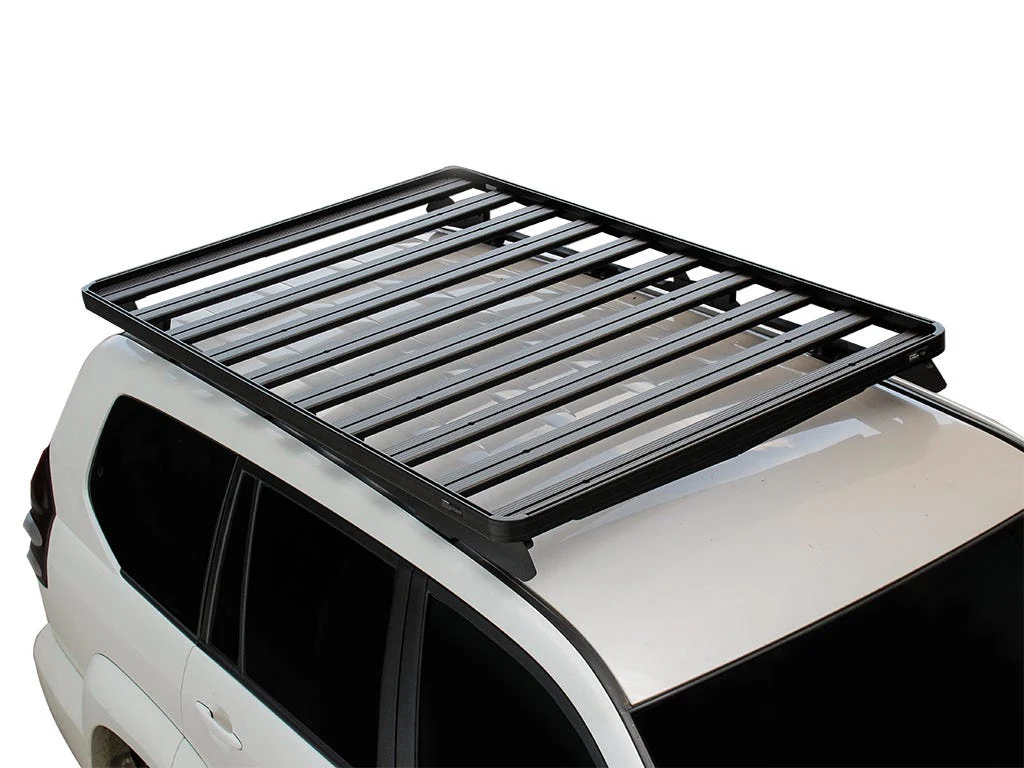

Toyota Prado 120 Slimline II Roof Rack Kit

This 1964mm/77.3'' long full-size Slimline II cargo carrying roof rack kit contains a Slimline II Tray, Wind Deflector, and 2 foot rails to mount the Slimline II Tray to your Toyota Prado 120. It easily installs using the existing factory mounting points. No drilling required.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Dometic racks are backed by a 5-year warranty*.

Specifications

KRTP012T - Toyota Prado 120 Slimline II Roof Rack Kit - by Front Runner.

Consists of:
1 x FATP002 - Toyota Prado 120 Foot Rails - by Front Runner
1 x RRSTD10 - Slimline II Tray - 1255mm(W) × 1964mm(L) - by Front Runner.

Material used:
Black epoxy powder-coated T6 aluminium
High strength steel

Approximate installed weight:
33kg (74lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2) to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicle’s roof.

Shipping dimensions:
Width: 450mm (18)
Length: 1615mm (64)
Height: 140mm (6)

Shipping weight:
Weight: 38.9kg (85.5lbs)

Dimensions: L: 450.0mm × W: 1730.0mm × D: 140.0mm

Weight: 39.20kg
